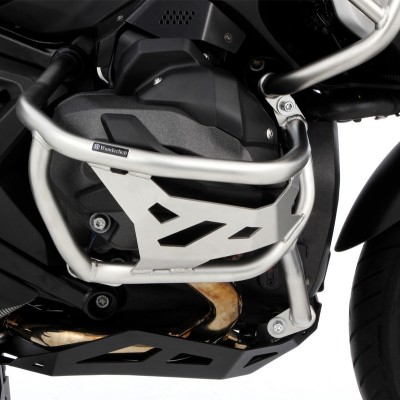

BMW R 1300 GS Ultimate Pro Wunderlich Stainless Steel Engine Crash Bar
The ULTIMATE PRO engine crash bars from Wunderlich are uncompromisingly designed for their protective effectiveness on adventures
Function and product features
The ULTIMATE engine crash bars from Wunderlich are uncompromisingly designed for their protective effectiveness on adventures
The ULTIMATE PRO features an additional, solidly constructed PROtection plate compared to the ULTIMATE engine crash bars,
which improves the protective effectiveness for the cylinder head and valve cover
whose tool design convincingly underlines the adventure look
Maximum protection thanks to additional structural reinforcements that significantly increase the rigidity of the crash bars
Perfect protection of the cylinders, valve covers and both lambda sensors reduces the risk of expensive damage to the motorcycle itself
Even distribution of forces across four mounting points per side of the vehicle
The bars are precisely shaped to fit the contours of the engine boxer
No impairment of ground clearance
Openings allow water or splashes to flow away freely during water crossings
Plug & Play: easy installation with comprehensive assembly instructions
Note
Also fits in combination with the original BMW cylinder head cover protection
Technical data
Material
High-quality stainless steel with high tensile strength and breaking elongation, carefully hand-crafted, precisely formed bending radii and clean welds, precise connections
Dimensions
Tube diameter 25 millimeters
Protection plate thickness 3 millimeters
Weight 5.5 kg
Color
Stainless steel color
Your Wunderlich advantages
Wunderlich premium product. Small series. Handmade
Wunderlich design. Integrated and functional.
Made in Germany
Wunderlich 60/5
Plus 5 years warranty.
ULTIMATE PRO – when it counts
Adventure bikers who travel the world know it: there are days when the bike falls over more than once on one side because the conditions are unimaginable in civilized and cultivated Europe with its developed road network. Or because the physical strain, due to heat or cold, can simply exhaust the strength and stamina to keep the bike upright. Beyond civilization, it is therefore even more important to be on the road with reliable equipment that can withstand the associated material stress and simply endure without fail, because it can be vital to remain mobile, always on the move and independent in order to minimize the risk to oneself as much as possible.
This ULTIMATE PRO engine protection bar from Wunderlich is specifically designed for adventure.
It reliably protects not only the cylinders and valve covers, but also both lambda sensors. The comprehensive protection concept increases passive safety and thus riding pleasure. In the event of a fall or accident, the forces involved are optimally distributed over the crash bar structure up to the load-bearing mounting points, so that force and moment peaks are avoided and material stress is effectively reduced. Compared to the ULTIMATE crash bar, the ULTIMATE PRO has an additional filler plate that further increases the protective effect.
The additional, four-welded PROtection plate of the PRO version made of stainless steel has a solid (and clearly visible) thickness of three millimetres. It features cut-outs, stiffens the tubular structure of the crash bar and simultaneously extends the immediate protection for the cylinder head and valve cover. The cut-outs not only underline the tool design in the adventure look, but also allow water to drain off directly after water crossings.
The crash bar structure is made of 25 millimetre precision stainless steel tubes. The tube segments are formed on CNC tube bending machines and then cleanly welded. Visually, the crash bar integrates into the design of the motorcycle and harmonizes with the distinctive look.
With our crash bars, the protective function and product design are crucial. The stainless steel engine protection bar enhances your BMW in a high-quality way. The stainless steel surface is glass-blasted and additionally electropolished.
Model compatibility:
BMW R 1300 GS from 2023
Market date:
Mid - end of August 2024
Availability:
Approx. 5 days
Manufacturer's comments:
Our product range includes well over 3,800 components from the areas of design, protection, luggage, chassis, ergonomics and motomedia for all current BMW motorcycle models and for many older model series. We adapt our components exclusively to BMW motorcycles with great attention to detail and the utmost care.
Our innovative and high-quality Wunderlich components incorporate the technological know-how that we have gained over many years of developing specific accessories for BMW motorcycles. This knowledge always flows into the products that we develop, produce and sell. We pay uncompromising attention to the highest quality, the best materials, integrated design and the best functionality. Everything for your riding pleasure. Production is usually carried out by hand and in small quantities or in series. This is our philosophy
- Marca
- BMW Motorcycles
- Compatible with Model:
- BMW R 1300 GS
